Description

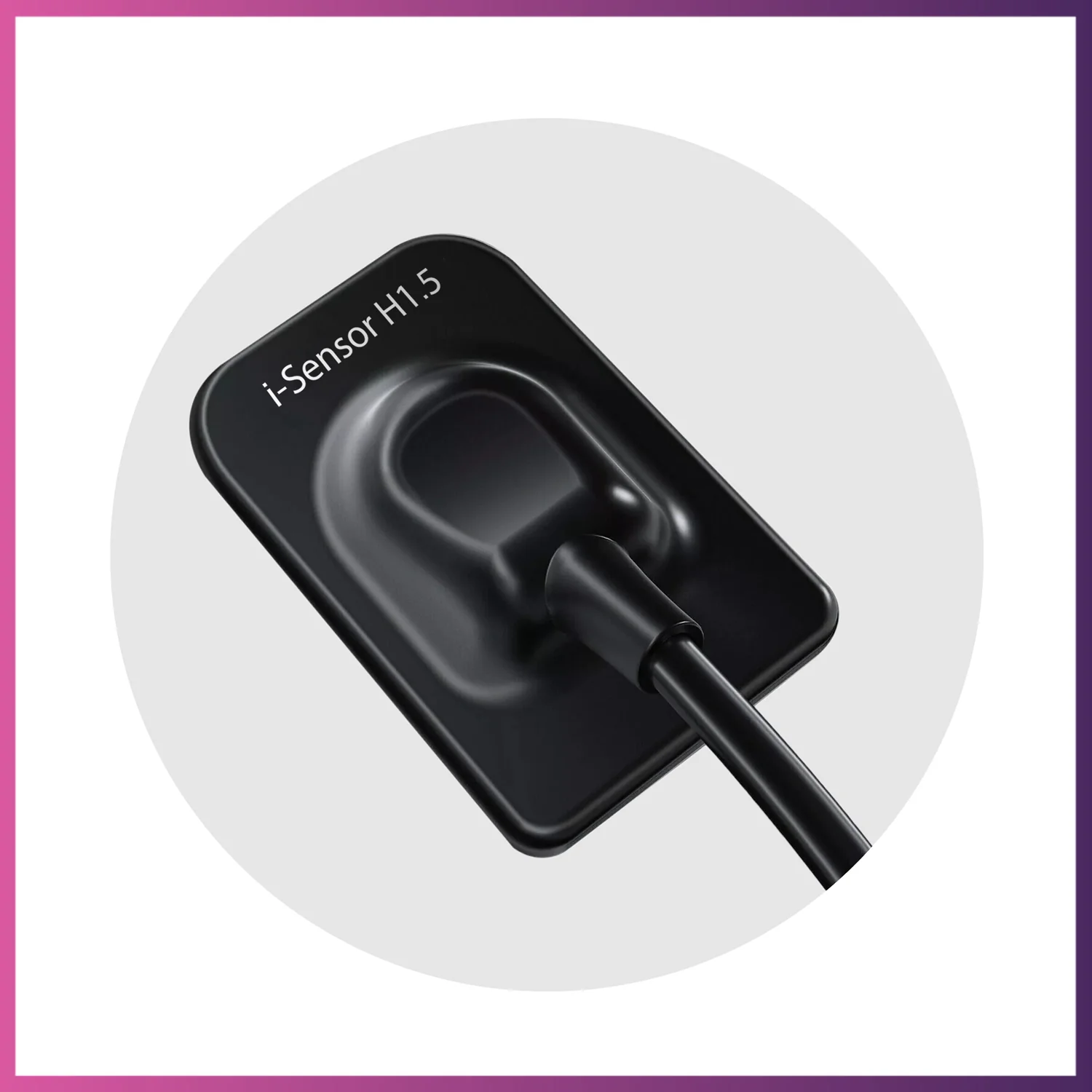

Woodpecker i-Sensor H1.5 is a digital intraoral X-ray sensor designed for high-resolution dental imaging with a compact and comfortable form factor. Its 24 × 33 mm active imaging area makes it well suited to older children and smaller adults, providing a balance between patient comfort and diagnostic coverage.
The sensor uses advanced CMOS imaging technology and connects directly through USB, allowing fast image capture without an external power supply. Its slim body, rounded edges, long cable, and IP68-rated housing are designed to support routine clinical use and easier intraoral positioning.
Specifications or Features
- Brand: Woodpecker
- Model: i-Sensor H1.5
- Product Type: Digital Intraoral X-Ray Sensor / RVG Sensor
- Intended Patient Group: Older children and smaller adults
- Active Imaging Area: 24 × 33 mm
- Sensor Dimensions: 43.5 × 29.2 × 4.5 mm
- Pixel Pitch: 20 μm
- Theoretical Spatial Resolution: 25 lp/mm
- Real Spatial Resolution: ≥12 lp/mm
- Scintillator: CsI
- Direct USB connectivity
- USB 2.0 interface
- No external power supply required
- IP68 water and dust protection
- Slim sensor body for easier intraoral placement
- Rounded edges for improved patient comfort
- Flexible cable approximately 2.8–3 m
- Supports TWAIN integration with compatible imaging software
- High-resolution digital image capture
- Suitable for routine intraoral radiography
